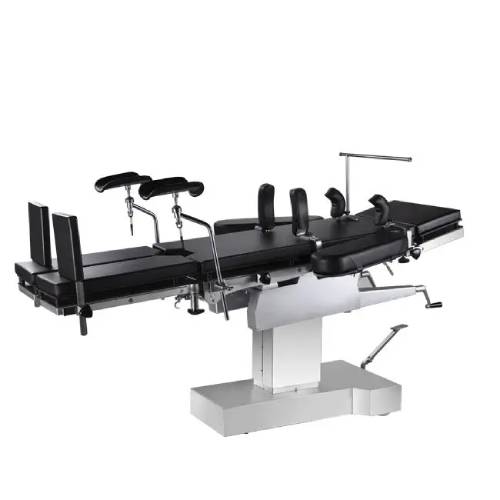

C-arm X-ray Operation Table Specifications:
Dimensions of Table Top
Overall Length | 2100mm |
Width | 500mm |
Dimensions of Sections
Head Rest | 250x500mm |
Back Section | 465x500mm |
Kidney Bridge | 75x500mm |
Seat Section | 450x500mm |
Leg Section | 600x240mm |
Foot Rest | 273x180mm |
Table Top from Floor
Max. Height | 1040mm |
Min. Height | 800mm |
Range of Movements
Max. Reversed Trendelenburg | >15° |
Max. Trendelenburg | >20° |
Max. Lateral Tilt | >18° |
Adjustments of Sections:
Head Rest-Raised From The Horizontal | >45° |
Head Rest-Lowered From The Horizontal | >90° |
Back Section-Raised From The Horizontal | 55° |
Leg Section-Lowered From The Horizontal | >90° |
Leg Section-Opened | >90° |
Backward And Forward Movements | >400mm |
Kidney Bridge Elevation | >120mm |
